SuperATV Polaris Ranger Pinion Shaft & Snorkel Gear Kit

SuperATV Polaris Ranger Pinion Shaft & Snorkel Gear Kit

For Polaris Ranger owners seeking superior reliability and performance, SuperATV's Pinion Shaft and Snorkel Gear Kit is an essential upgrade. A transmission failure can severely impact your Ranger's functionality, and the factory snorkel gear is a known weak point. SuperATV addresses this by utilizing 9310 alloy steel, the same high-strength gear material trusted in NASCAR, to construct our components. This robust material ensures our Pinion Shaft and Snorkel Gear can withstand extreme torque and high-stress conditions, significantly enhancing the durability and longevity of your Polaris Ranger's drivetrain.

Lapped Gears Mate Perfectly: To guarantee optimal performance and extended lifespan, our snorkel and pinion gears undergo a precise lapping process before they reach you. This involves running each pair of gears together in a specialized procedure until they achieve a perfectly smooth and precise fit. This meticulous "mating" process ensures superior efficiency and noticeably smoother operation right from the initial revolution, surpassing the performance of stock components. The result is a Polaris Ranger that can tackle longer and more demanding rides with increased reliability and reduced wear.

Polaris Front Output Shaft - Heavy Duty: Since transmission work is a significant undertaking, it's an ideal time to comprehensively reinforce your entire transmission. The optional GDP heavy-duty front output shaft provides a substantial upgrade, being 41% stronger than the factory unit. This increased strength instills confidence for aggressive trail riding and sustained operation. Unlike the original equipment, GDP's front output shaft is expertly constructed from industry-leading 300M material, then precisely heat-treated. This meticulous blend of material and treatment has undergone rigorous field and torque testing, ensuring unparalleled strength and exceptional longevity for your Polaris Ranger.

Features:

• Pinion shaft and gears are precision-engineered from 9310 heavy-duty steel, providing exceptional strength and durability for your Polaris Ranger.
• The optional front output shaft, crafted from advanced 300M material, delivers a significant strength increase.
• Experience a drivetrain that is 2.5 times stronger than stock, significantly reducing the risk of transmission failure.
• Lapped gears are perfectly mated for reduced wear, quieter operation, and smoother power transfer.
• This kit directly addresses and eliminates a major weak spot within the Polaris Ranger transmission, improving overall reliability.
• It comprehensively strengthens the entire drivetrain, allowing your Ranger to handle more demanding conditions.

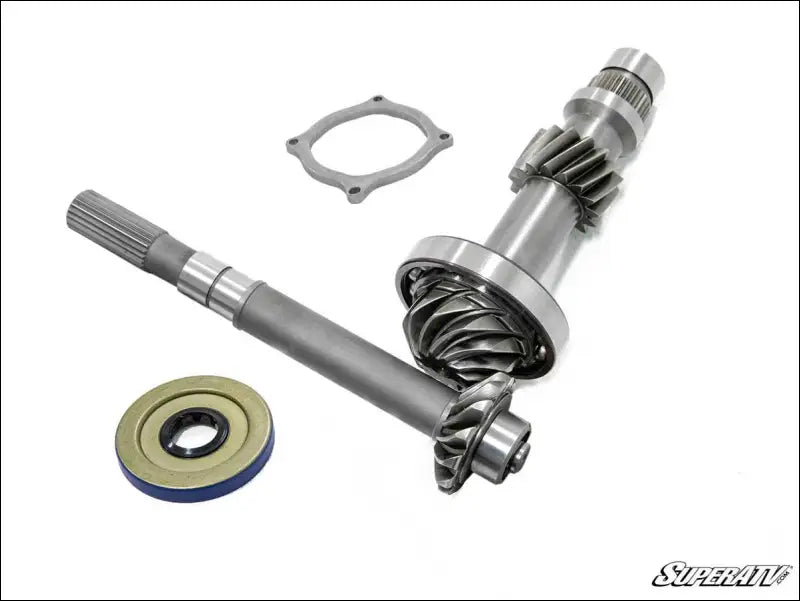

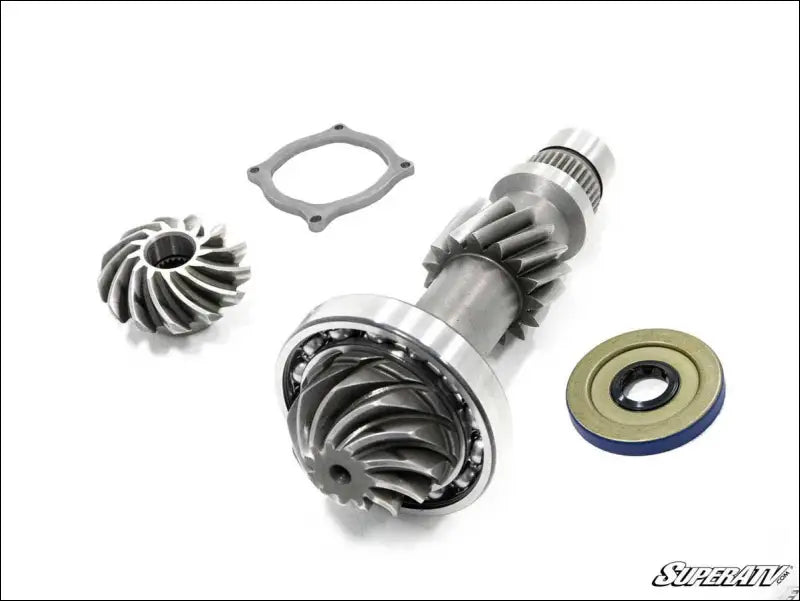

Pinion Shaft and Snorkel Gear Set Includes:

• Snorkel Gear
• Pinion Shaft (with pinion gear)
• Pinion Bearing
• Retaining ring
• Output shaft seal
• Front Output shaft (optional)
• Heavy-duty Pinion Bearing Retainer‰ÛÓa $50 value free

Fitment:

Replaces OEM Part#: 3235336 & 3235237

• Polaris Ranger XP 1000 : 2017 (Pinion Shaft and Snorkel Gear Only)
• Polaris Ranger XP 1000 Crew : 2017-2018 (Pinion Shaft and Snorkel Gear Only)
• Polaris Ranger XP 900 : 2013+
• Polaris Ranger XP 900 Crew : 2014+
• Polaris Ranger Midsize 570 : 2014+
• Polaris Ranger Midsize 570 Crew : 2015+
• Polaris Ranger XP 570 : 2015-2016
• Polaris Ranger XP 570 Crew : 2015-2016
• Polaris Ranger 570 Full-Size : 2016+
• Polaris Ranger 570 Full-Size Crew : 2016+
• Polaris Ranger 1000 Diesel : 2015-2018
• Polaris Ranger 1000 Diesel Crew : 2015-2018
• Polaris Ranger 500 : 2017+
• Polaris Ranger ETX : 2015-2017

Notes:

• Does not fit OEM part # 3235225

Instructions:

• Instructions - FOS-P-001
