SuperATV Honda Talon 1000R High Clearance Boxed Radius Arms

SuperATV Honda Talon 1000R High Clearance Boxed Radius Arms

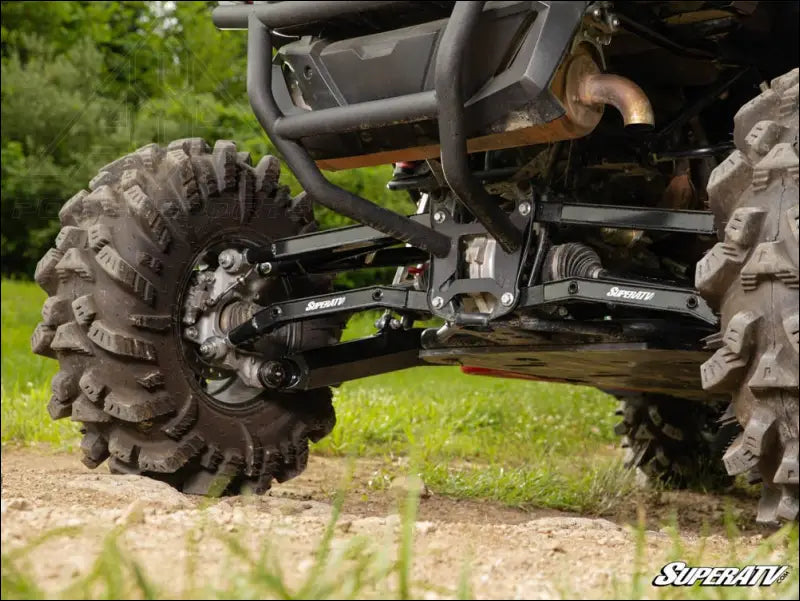

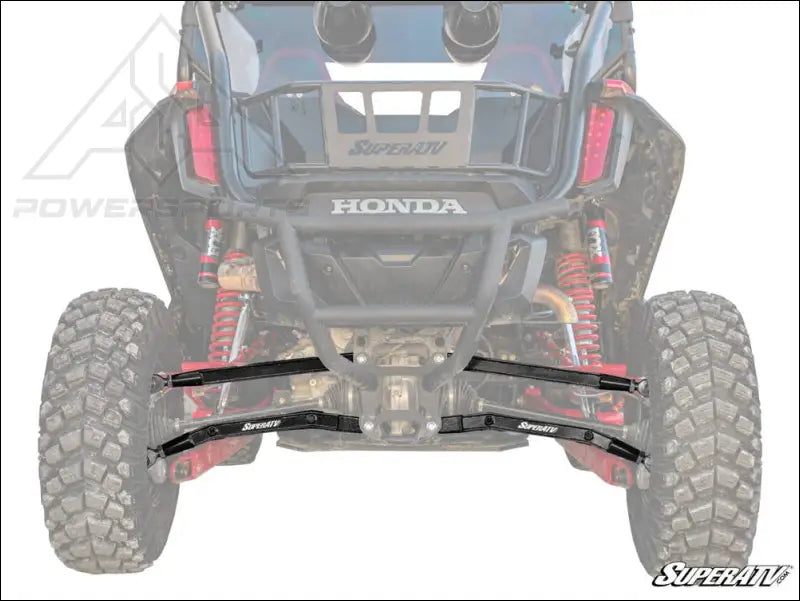

Because of their exposed placement on your machine and aggressive riding styles, your radius arms are constantly subjected to immense stress. They're vulnerable to damage from rocks, stumps, and ruts, often beyond repair. Since your OEM arms aren't engineered for such intense abuse, upgrading is a smart choice. SuperATV's High-Clearance Boxed Radius Arms are designed to make your Honda Talon 1000R's rear suspension incredibly durable and capable of handling any challenge. They offer superior strength compared to stock components and enhance the visual appeal of your machine's rear end. The integrated high-clearance bend also significantly improves your Honda Talon's capability on rugged and uneven terrain.

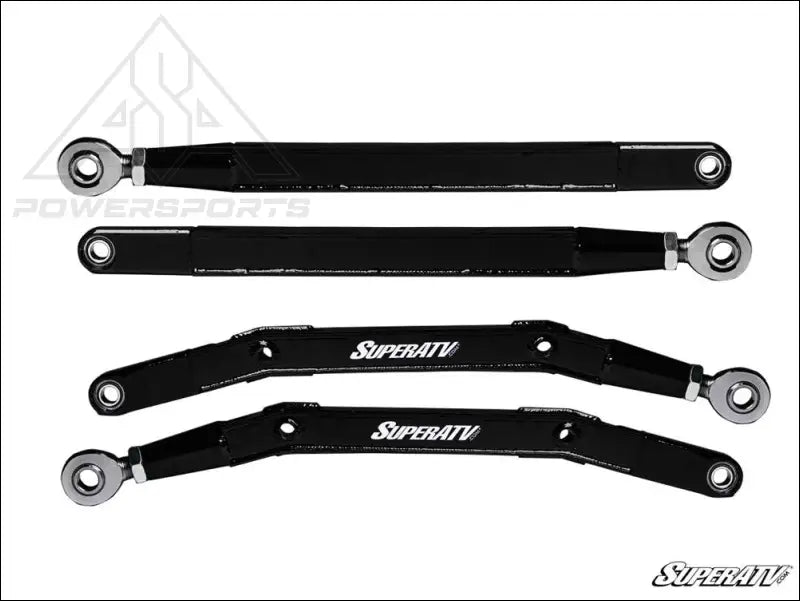

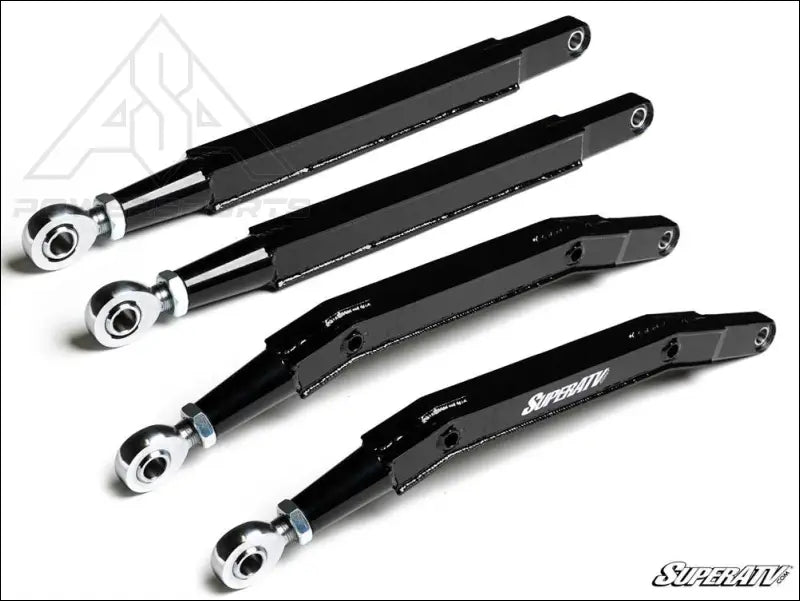

Our Honda Talon radius rods are engineered for exceptional, long-lasting durability. They feature robust 3mm steel plating reinforced with 5mm internal gussets. This isn't just ordinary steel; we utilize an advanced alloy steel that surpasses the strength of chromoly. Every component is powder-coated for superior corrosion resistance, significantly extending the lifespan of your radius arms. For even greater strength, they are equipped with massive 7/8” heim joints and zinc-plated chromoly steel bushings, providing an unbeatable combination of resilience and performance. We stand by the long-lasting strength of these radius arms by offering a lifetime warranty, demonstrating our commitment to dependability.

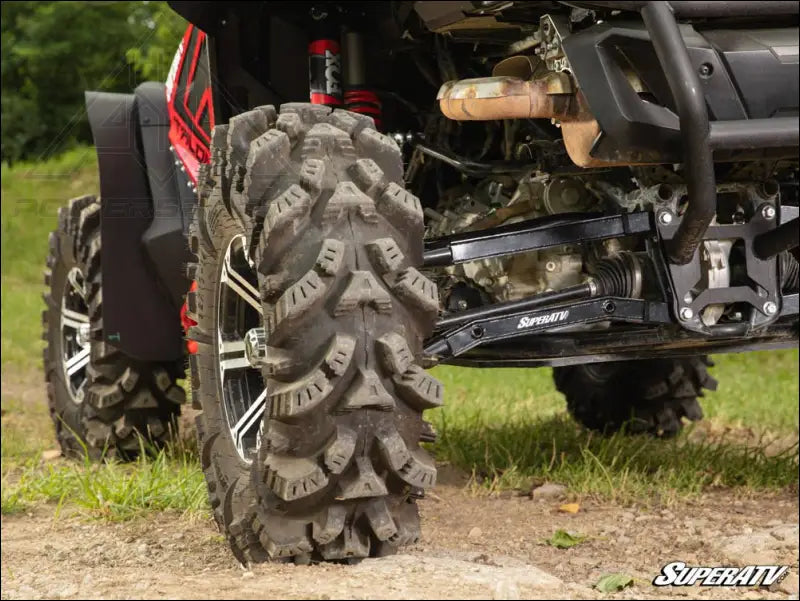

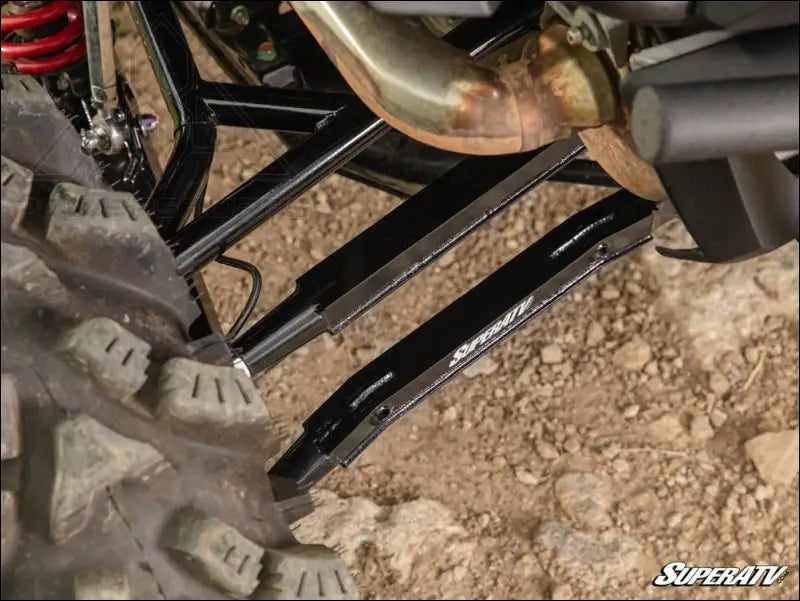

No matter your riding environment, increased ground clearance is always a valuable asset. These radius arms feature a strategic high-clearance bend, providing additional space between the arms and the ground. This design not only improves maneuverability but also contributes to a smoother and more capable ride. Additionally, the massive, fully adjustable heim joints allow for precise camber adjustments. This enables you to accommodate significant modifications like a lift kit or larger tires without compromising ride quality or handling.

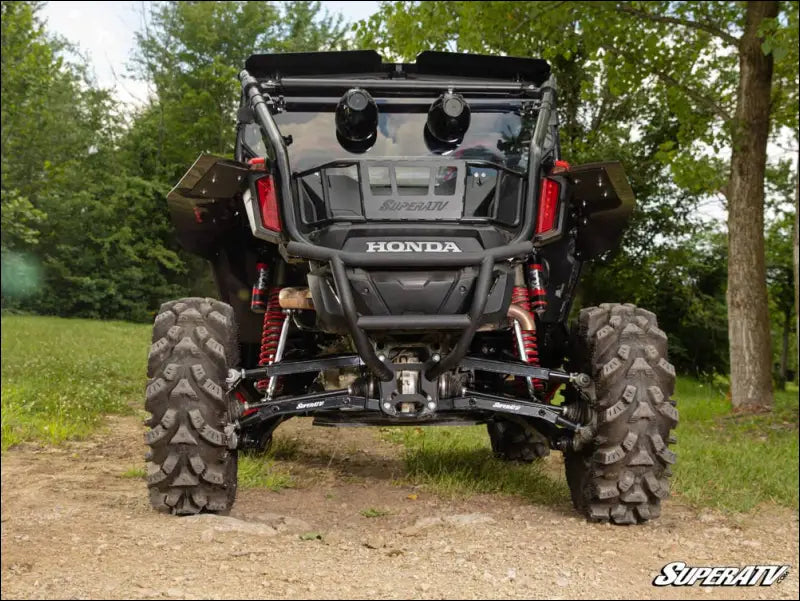

Beyond delivering unmatched strength, these radius arms also transform the aesthetic of your Honda Talon 1000R. Their rugged boxed construction provides a complete visual overhaul for the rear end, giving your Talon a more aggressive and formidable presence on the trail. This blend of superior performance and head-turning good looks offers the total package, making your machine stand out from the crowd.

Features:

• Made of a high-strength, advanced alloy steel
• High clearance for enhanced maneuverability

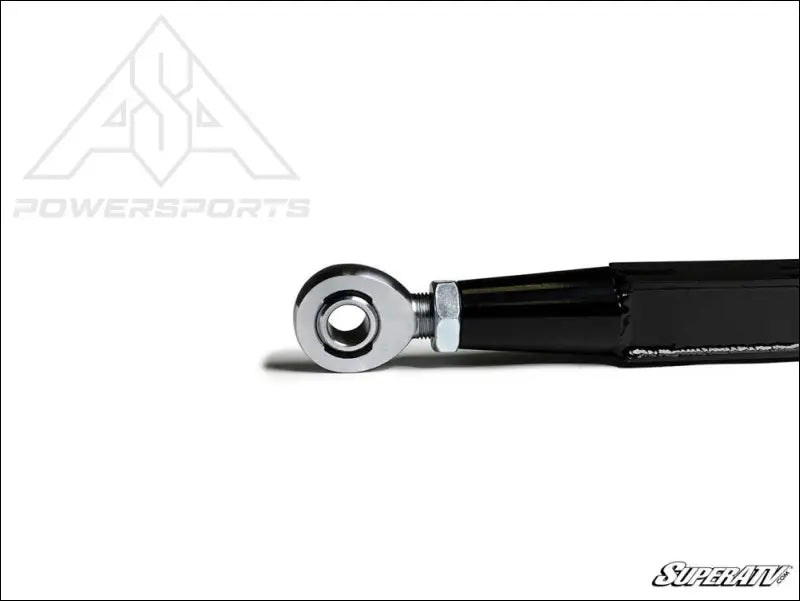

• Massive 7/8‰۝ adjustable heim joints
• Zinc-plated chromoly steel bushings
• Excellent strength-to-weight ratio

*The heims included in this kit are considered ‰ÛÏwear and tear‰۝ items. SuperATV extends a 30-day warranty to the original purchaser that each and every one be free from manufacturer's defects.

Fitment:

• Honda Talon 1000R : 2019+
• Honda Talon 1000R-4 : 2023+

Instructions:

• Instructions - RA-H-TALR-HC-BX
