SuperATV Can-Am Maverick X3 Heavy Duty Prop Shaft - Rhino Driveline

SuperATV Can-Am Maverick X3 Heavy Duty Prop Shaft - Rhino Driveline

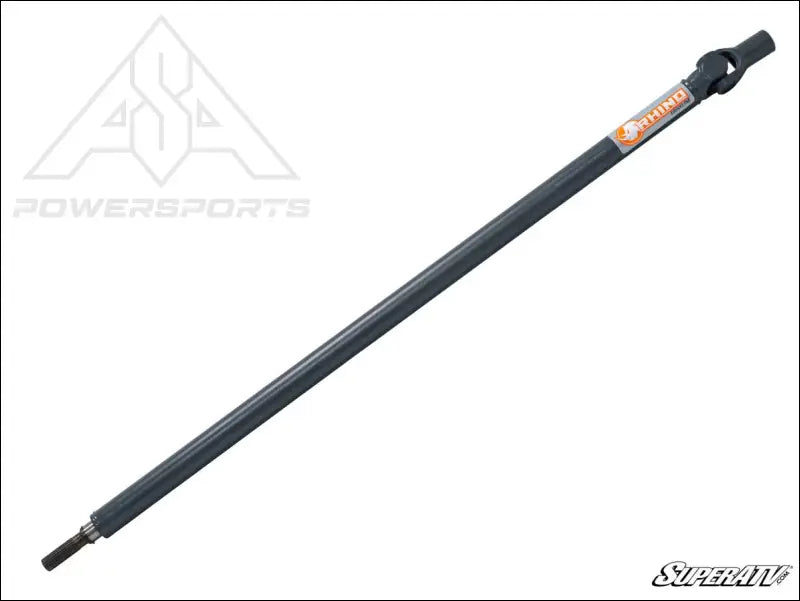

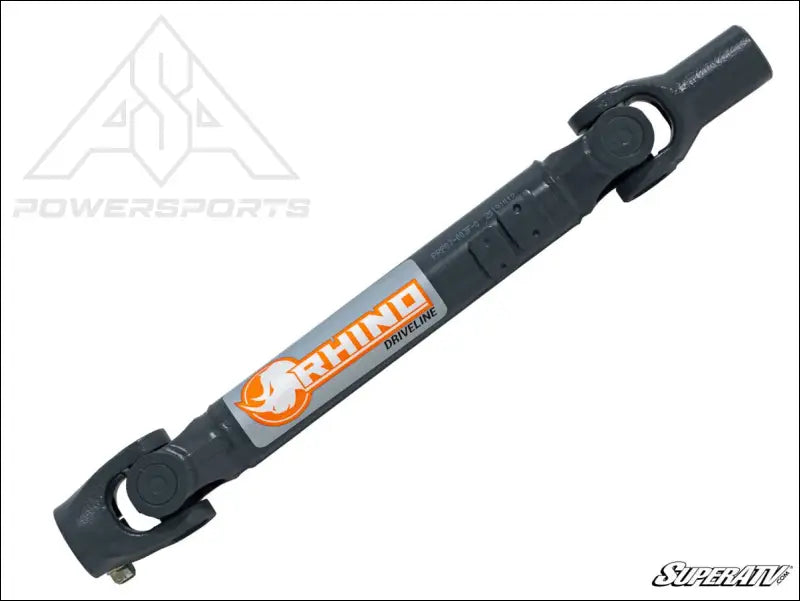

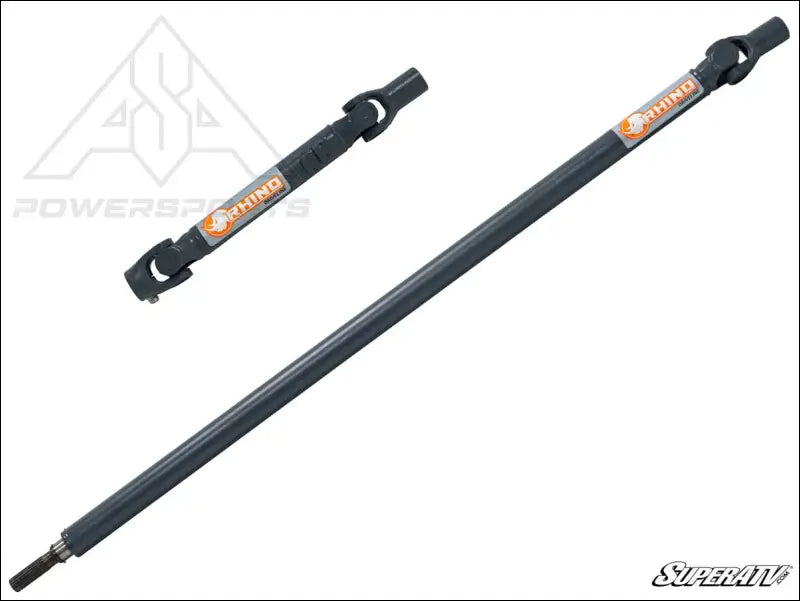

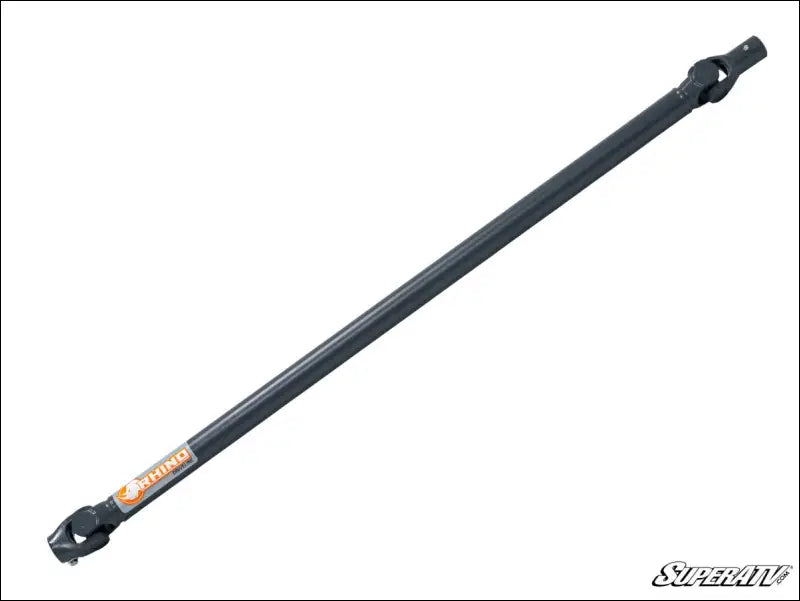

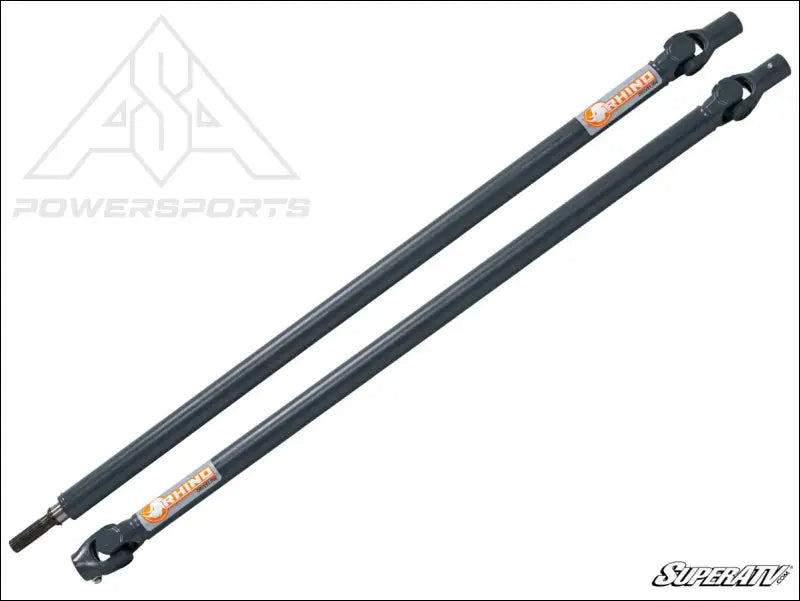

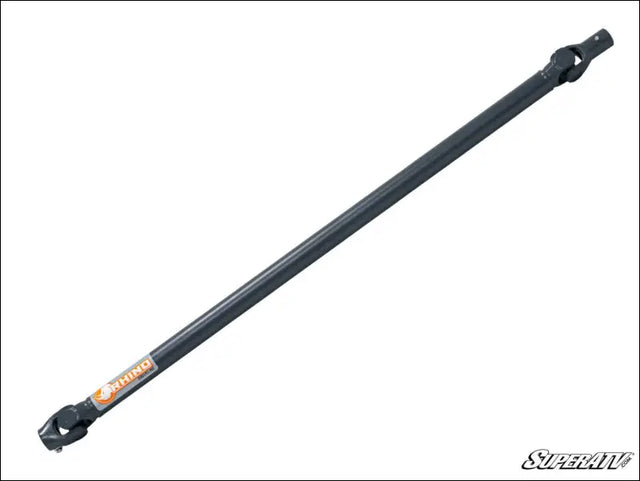

Riding fast and hard on your Can-Am Maverick X3 demands robust components, and the SuperATV Rhino Driveline Prop Shaft is engineered for exactly that. If you're pushing your UTV to its limits with high-performance, white-knuckle driving, you need to reinforce its essential driveline components. This heavy-duty prop shaft from SuperATV is designed to be the strongest you can get, built to prevent the common failures associated with OEM parts. It's not just a replacement; it's a significant upgrade that will allow your Maverick X3 to perform in ways a stock shaft simply cannot.

Superior Construction: The SuperATV Rhino Driveline Prop Shaft features a robust construction that significantly surpasses OEM specifications. It boasts a .120” wall thickness and a 1.75” diameter tube, making it both thicker and larger than your factory prop shaft. For enhanced durability, it's crafted from chromoly steel alloy, a material renowned for its strength and fatigue resistance, unlike the standard carbon steel used in OEM shafts. Each Rhino Driveline Prop Shaft is also precision-balanced and phased, ensuring exceptionally smooth operation without unwanted vibrations or wobble, even under extreme conditions. This robust design makes it resilient against harsh terrains like creeks, rocks, mud, and steep hills, ensuring it won't break when you're riding your hardest.

U-Series U-Joints: Complementing the enhanced strength of the shaft itself are the U-Series U-joints, which offer superior durability compared to stock components. While they utilize the traditional needle bearings found in OEM U-joints, the U-Series bodies are constructed from a premium 4340 chromoly steel. These beefy U-joints are engineered with tight seals, effectively preventing contamination and wear, and require no maintenance. This means that once installed, they are designed to outlast your stock prop shaft by a considerable margin, keeping your prop shaft in optimal condition and ensuring you continue rolling through the toughest challenges your Maverick X3 faces.

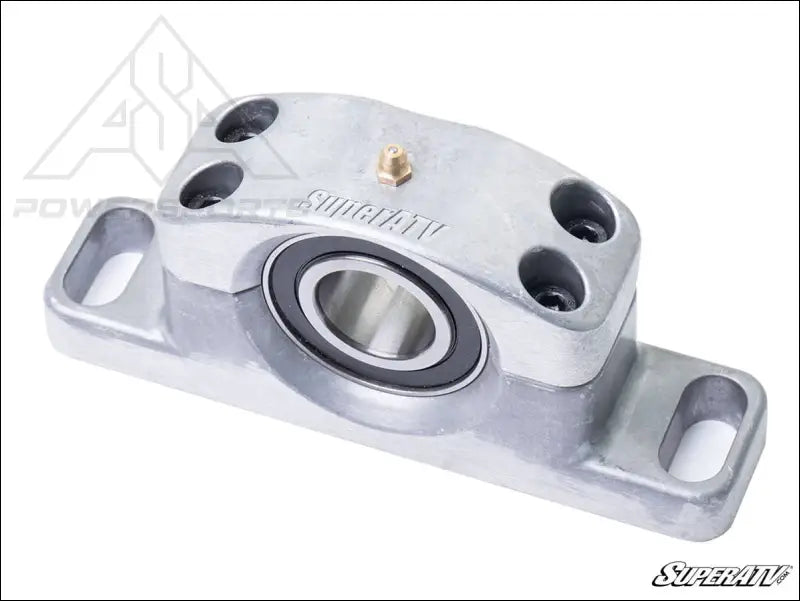

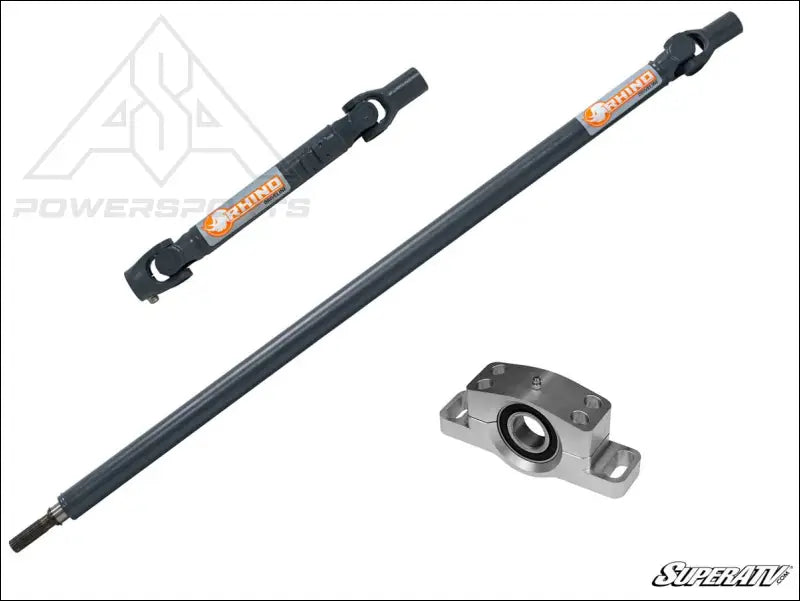

Use with Our Cast or Billet Aluminum Carrier Bearings: For optimal performance and longevity, SuperATV Rhino Driveline Prop Shafts are exclusively compatible with SuperATV Carrier Bearings. This integration is a major benefit, as our carrier bearings are engineered to the highest standards. They feature a greaseable, self-aligning bearing and an innovative two-piece design that simplifies both installation and routine maintenance. We offer two material options to suit every rider's needs: our A380 cast aluminum option provides a long-lasting and reliable solution that is inherently stronger than a stock carrier bearing. For riders seeking the absolute maximum performance, we offer the 6061 billet aluminum carrier bearing. This 100% American-made billet carrier is CNC machined, resulting in a product that is even stronger than its cast counterpart, making it perfect for those who constantly push their Maverick X3 to the limits.

Features:

Rhino Driveline Shaft:

• Shaft diameter is .5″ larger than stock
• Shaft wall is .120″ vs stock’s .088″
• Made of 4130 chromoly tubing (stock is plain carbon steel)

U-Series:

• Uses a traditional needle-bearing U-joint
• Made of 4340 chromoly steel
• Phased and balanced—no vibration and no wobble
• Sealed for long lasting operation—no maintenance

Fitment:

PRP07-003-F-0:

Replaces OEM Part

• 705402187, 705402114
• Can-Am Maverick X3 900 : 2018
• Can-Am Maverick X3 Turbo : 2017-2019
• Can-Am Maverick X3 Turbo R : 2017-2019
• Can-Am Maverick X3 X DS Turbo R : 2017-2019
• Can-Am Maverick X3 X RC Turbo : 2018-2019
• Can-Am Maverick X3 X RC Turbo R : 2018-2019
• Can-Am Maverick X3 X MR Turbo : 2018-2019
• Can-Am Maverick X3 X MR Turbo R : 2018-2019
• Can-Am Maverick X3 X RS Turbo R : 2017-2019

PRP07-002-F-0:

Replaces OEM Part

• 705402188
• Can-Am Maverick X3 MAX Turbo : 2018-2019
• Can-Am Maverick X3 MAX Turbo R : 2018-2019
• Can-Am Maverick X3 MAX X DS Turbo : 2018-2019
• Can-Am Maverick X3 MAX X MR Turbo : 2018-2019
• Can-Am Maverick X3 MAX X MR Turbo R : 2019
• Can-Am Maverick X3 MAX X RS Turbo R : 2018-2019

PRP07-002R-0:

Replaces OEM Part

• 705402026
• Can-Am Maverick X3 900 : 2018
• Can-Am Maverick X3 Turbo : 2017-2019
• Can-Am Maverick X3 Turbo R : 2017-2019
• Can-Am Maverick X3 X DS Turbo R : 2017-2019
• Can-Am Maverick X3 X RC Turbo : 2018-2019
• Can-Am Maverick X3 X RC Turbo R : 2018-2019
• Can-Am Maverick X3 X MR Turbo : 2018-2019
• Can-Am Maverick X3 X MR Turbo R : 2018-2019
• Can-Am Maverick X3 X RS Turbo R : 2017-2019
• Can-Am Maverick X3 MAX Turbo : 2017-2019
• Can-Am Maverick X3 MAX Turbo R : 2017-2019
• Can-Am Maverick X3 MAX X DS Turbo : 2017-2019
• Can-Am Maverick X3 MAX X MR Turbo : 2018-2019
• Can-Am Maverick X3 MAX X MR Turbo R : 2019
• Can-Am Maverick X3 MAX X RS Turbo R : 2017-2019

Instructions:

• Instructions - PROP-ORIENTATION-CA
• Instructions - PRP07-002R
• Instructions - PRP07-003F
• Instructions - PRP07-003F-002R
• Instructions - PRP07-003F-002R
• Instructions - PRP07-003F-002R
